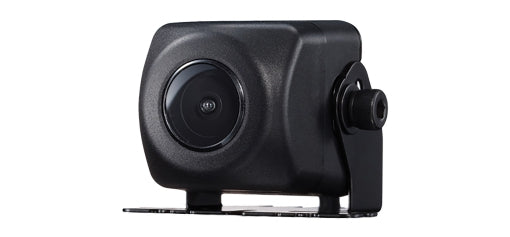

This high-quality, NTSC universal camera displays a mirror-image on your tuner's screen, giving you a full view of everything the rear-view mirror fails to show.
The high-sensitivity camera has a 129° wide viewing angle.

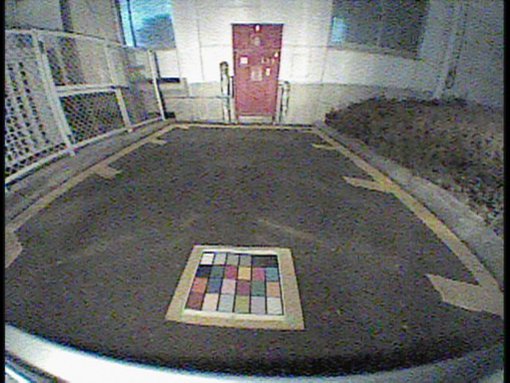

The embedded CMOS sensor automatically adjusts brightness in light or dark driving conditions. With a resolution of 310,000 pixels, the sensor is as accurate as it is sensitive.

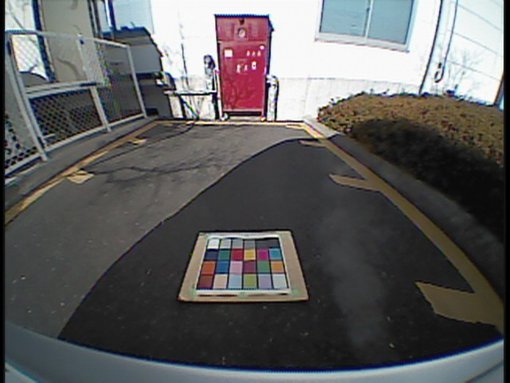

The camera even eliminates over-exposed images by removing the white streaks as direct sunlight enters the lens.
The ND-BC8 can be hooked up to any Pioneer systems equipped with a rear camera input. A 10-metre long connection cable is included in the package.
|Dimensions (W x H x D)||• Camera: 23.8 x 23.8 x 25.5 mm
• Power unit: 54 x 24 x 24 mm
|Weight||• Camera: 132 g / 186 g including cables
• Power unit: 110 g
|Other||• 0.31M pixels 1/4" CMOS sensor
• Cable: 10 m (3 m + 7 m)
• Horizontal: 129°
• Vertical: 105°
Power Supply: 14.4V DC (10.8 .. 15.1V)
