Description

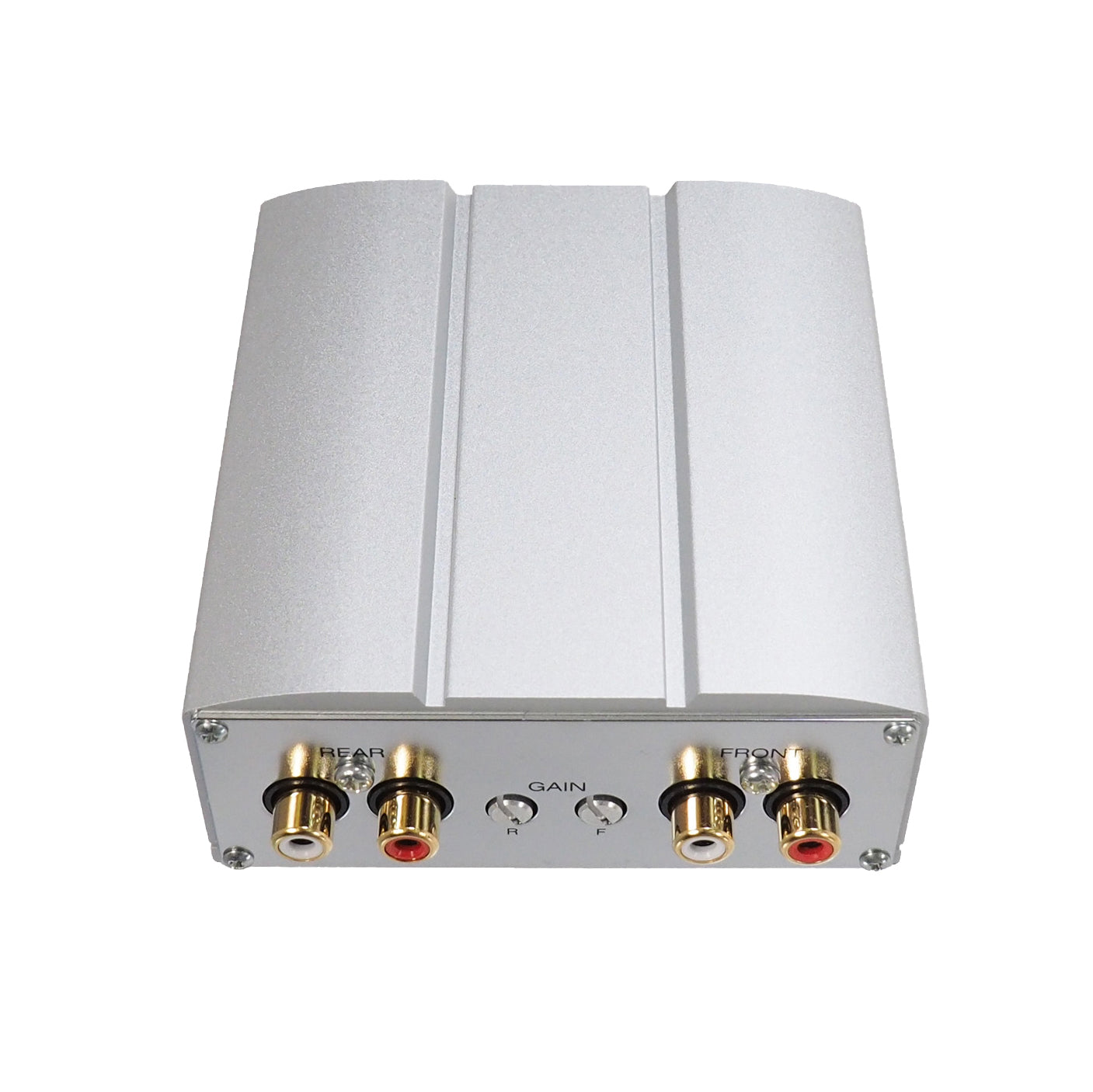

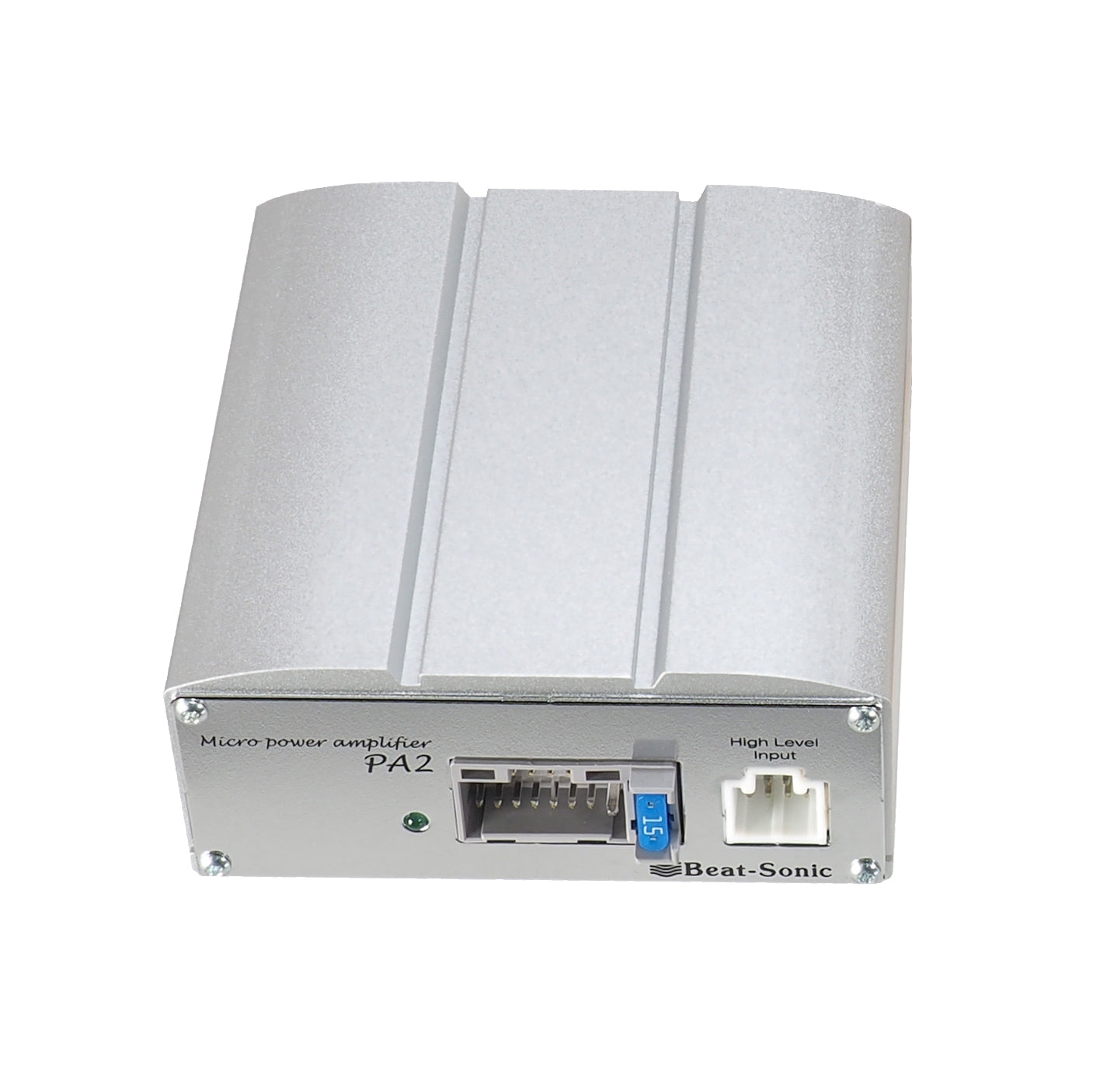

Beat-Sonic PA2T1K Plug and Play Power Amplifier Kit for Select 1987-2019 Toyota and Scion Models.

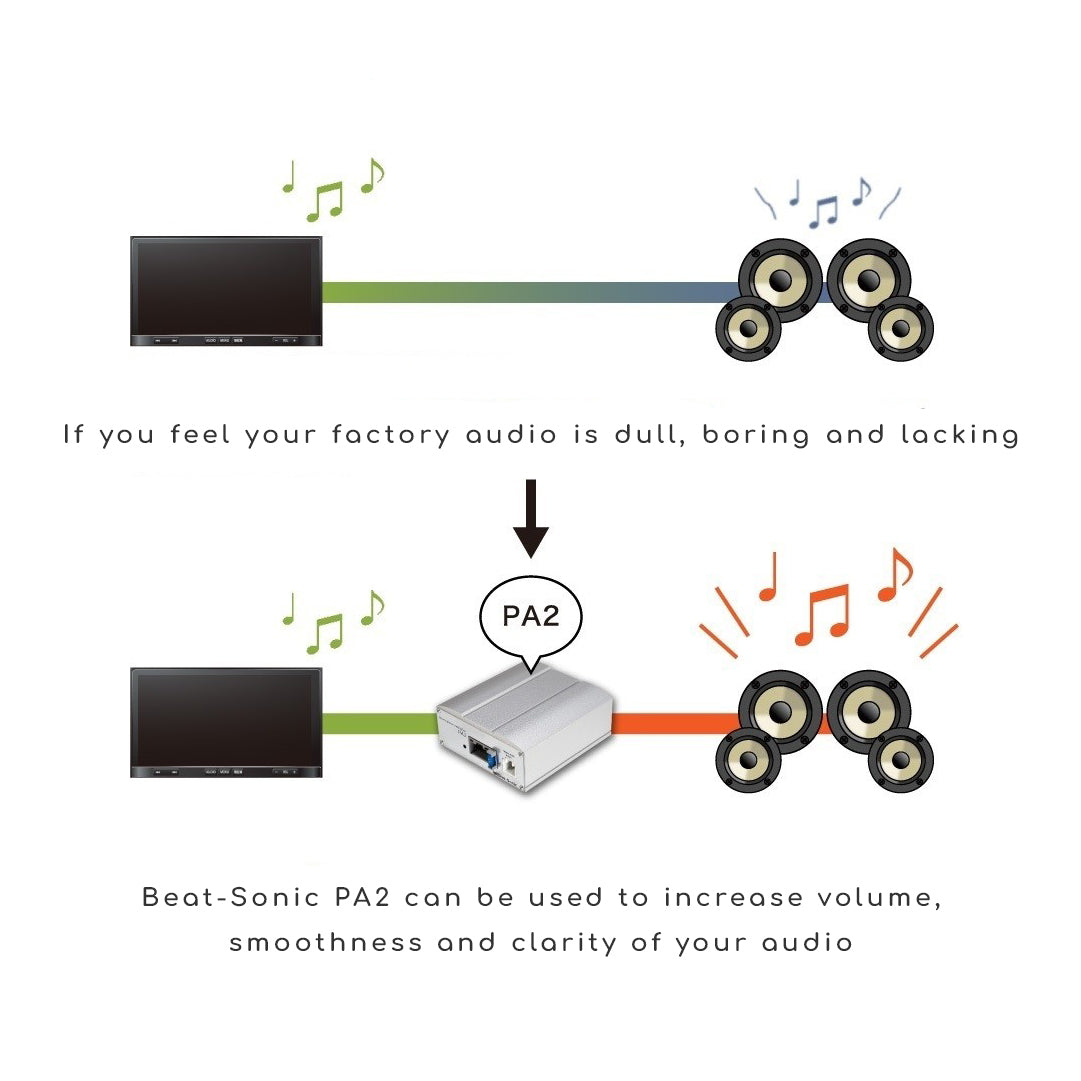

Looking for the extra clarity from the music? Or the extra punch on the bass? This is Beat Sonics' plug and play solution to the fastest, easiest and the biggest noticeable improvement with your car vehicle system using your factory speakers. (Using new aftermarket speakers not recommended as performance may vary).
Features
- Encore Alpha Series
- Ultra-compact amplifier seamlessly installs to the factory stereo system
- Additional RCA high level input for for even a higher quality sound
- Significantly improve sound quality with a more clarity and powerful sound output between low, mid and high ranges.
- Experience high resolution sound while keeping factory speakers and headunit.
- Uses carefully selected acoustic components including high quality electrolytic and low impedance capacitors, extra copper thickness of 70μ to improve all frequencies from low to high.
- Compact size allows for flexibility with installation location.
- High-quality FET operational amplifier is used for input sections. Details of the music including artist's voice and breath tone will be expressed at a high resolution level.
Compatibility (Not Compatible with JBL Models):
- 2013-2016 Scion FR-S
- 2013-2023 Subaru BRZ
- 2017-2020 Toyota86
- 2022-2023 Toyota GR86
- 2014-2019 Toyota 4Runner
- 2015-2018 Toyota Avalon
- 2014-2017 Toyota Camry
- 2014-2019 Toyota Corolla
- 2014-2019 Toyota Highlander
- 2015-2019 Toyota Prius
- 2015-2019 Toyota Prius c
- 2016-2017 Toyota Prius v
- 2013-2018 Toyota RAV4
- 2014-2019 Toyota Sequoia
- 2015-2017 Toyota Sienna
- 2014-2019 Toyota Tacoma
- 2014-2019 Toyota Tundra
- 2014-2018 Toyota Yaris
- + All other 1987-2019 Toyota and Scion models without JBL and with 10/6pin radio connectors
Beat-Sonic PA2 Overview - Download here
Specifications
Maximum output | 45W x 4ch (4Ω) |
Compatible impedance | 4-8Ω |
Input sensitivity | 0.5-5V |
Frequency characteristics | 15-80kHz (+0, -1dB) |
Total harmonic distortion | 0.01% (1kHz / 4Ω) |
Power supply | DC12V (minus ground) |
Power supply voltage | DC11V ~ 15V |
Current consumption | 0.2A (when there is no signal) |
Fuse used | 15A |
Audio input | AUX level (RCA) |
Speaker level | Supports high level input |
Dimensions | 96 (W) x 40 (D) x 113.5 (H) |
Weight | 420g (main unit only) |
