Description

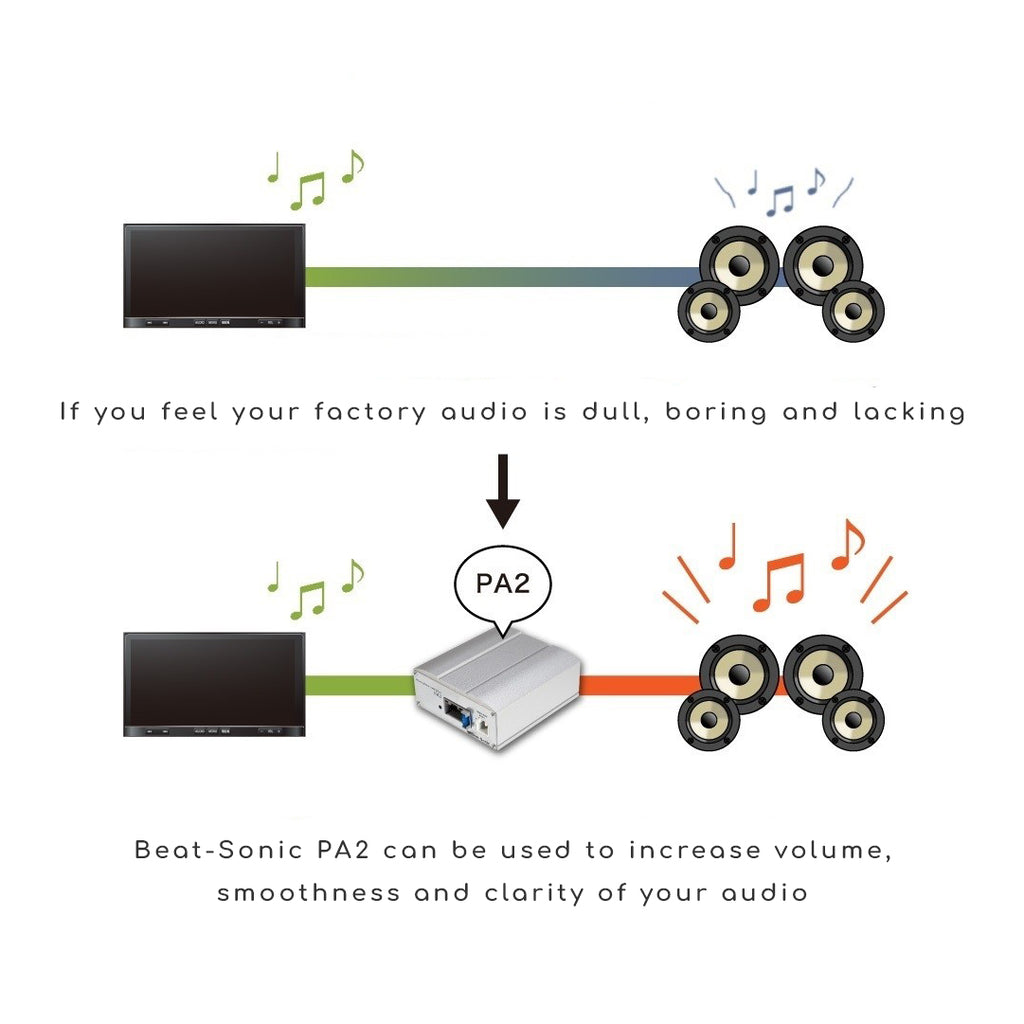

Beat-Sonic PA2H1 Power Amplifier Kit is the plug and play solution to significantly improve and enhance your factory Non-Bose stereo system. The kit is easy to install with no special tools required and no modifications to the factory harness.
Beat-Sonic PA2H1 plug and play micro power amplifier kit for select 2008-2016 Honda models.
Looking for the extra clarity from the music? Or the extra punch on the bass? This is Beat Sonics' plug and play solution to the fastest, easiest and the biggest noticeable improvement with your car vehicle system using your factory speakers. (Using new aftermarket speakers not recommended as performance may vary).
Features:
- Ultra-compact amplifier seamlessly installs to the factory stereo system
- Additional RCA high level input for for even a higher quality sound
- Significantly improve sound quality with a more clarity and powerful sound output between low, mid and high ranges.
- Experience high resolution sound while keeping factory speakers and headunit.
- Uses carefully selected acoustic components including high quality electrolytic and low impedance capacitors, extra copper thickness of 70μ to improve all frequencies from low to high.
- Compact size allows for flexibility with installation location.
- High-quality FET operational amplifier is used for input sections. Details of the music including artist's voice and breath tone will be expressed at a high resolution level.
- Compatibility (Not Compatible with Bose Models):
- 2008-2013 Honda Accord
- 2008-2017 Honda Civic
- 2010-2016 Honda Accord Crosstour
- 2012-2014 Honda CR-V
- 2012-2016 Honda CR-Z
- 2009-2017 Honda Fit
- 2016-2018 Honda HR-V
- 2010-2014 Honda Insight
- 2011-2017 Honda Odyssey
- 2009-2020 Honda Pilot
- 2009-2019 Honda Ridgeline
Beat-Sonic PA2 Overview - Download here
Specifications
| Maximum output | 45W x 4ch (4Ω) |
| Compatible impedance | 4-8Ω |
| Input sensitivity | 0.5-5V |
| Frequency characteristics | 15-80kHz (+0, -1dB) |
| Total harmonic distortion | 0.01% (1kHz / 4Ω) |
| Power supply | DC12V (minus ground) |
| Power supply voltage | DC11V ~ 15V |
| Current consumption | 0.2A (when there is no signal) |
| Fuse used | 15A |
| Audio input | AUX level (RCA) |
| Speaker level | Supports high level input |
| Dimensions | 96 (W) x 40 (D) x 113.5 (H) |
| Weight | 420g (main unit only) |
