Description
For cars equipped with Toyota dealer option navigation system (10-pin/6-pin).
Sound is reproduced realistically with a high-performance DSP-equipped amplifier. You can feel as if you are playing right in front of you.
DSP requires setup via software.
Made in Japan.
From the Beat-Sonic Encore X Series.
Spec
|
power supply |
DC12V (negative ground) |
| Power-supply voltage | 10V-15V |
| current consumption | 15A |
| current consumption | 0.35A (no signal) |
| Fuse used | 250V, 15A, φ5.2×30mm (attached to vehicle connection cable) |
| Remote terminal output for external amp | 12V |
| remote output current | 0.1A |
| Frequency characteristic (+0/-1dB) | 20Hz-22kHz |
| S/N ratio | 105dB |
| Total harmonic distortion | 0.01% |

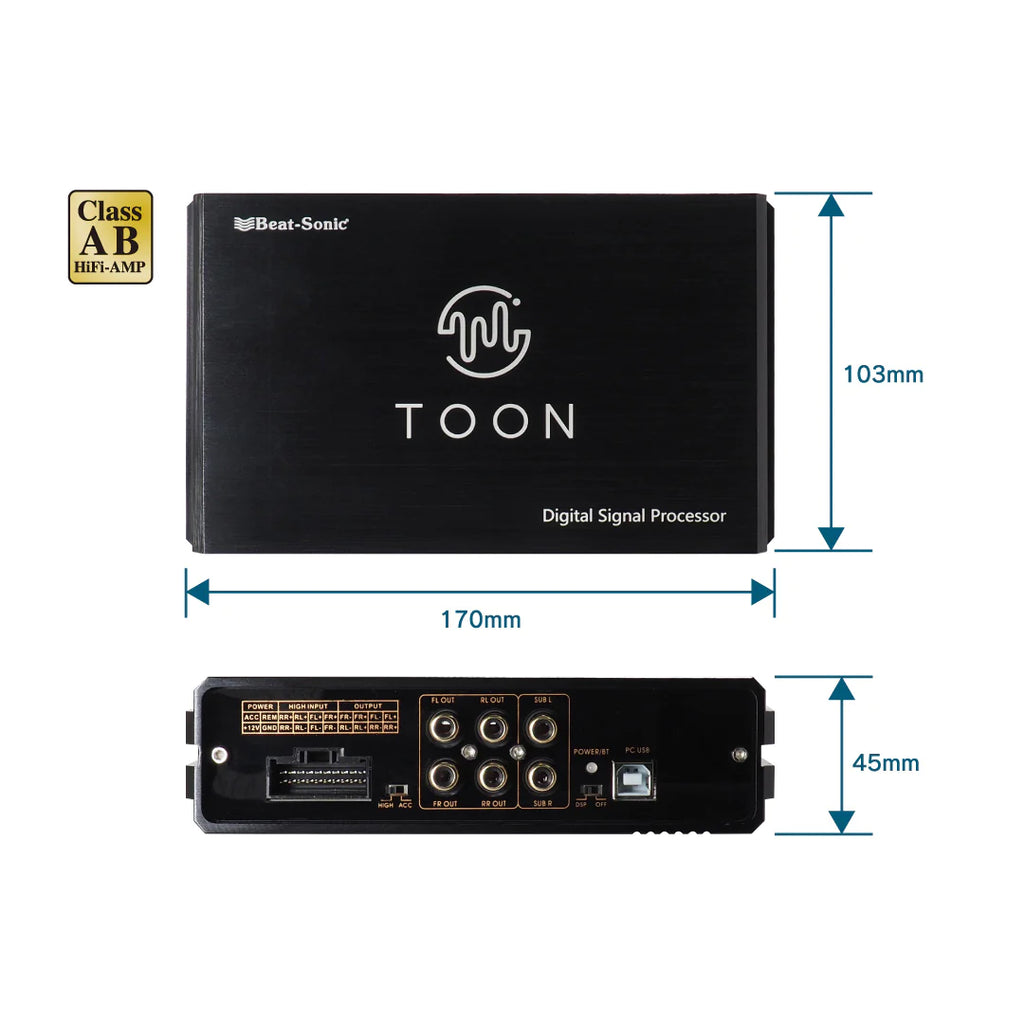

| Dimensions (WxDxH) mm | 170×103×45 |
| mass | 900g |

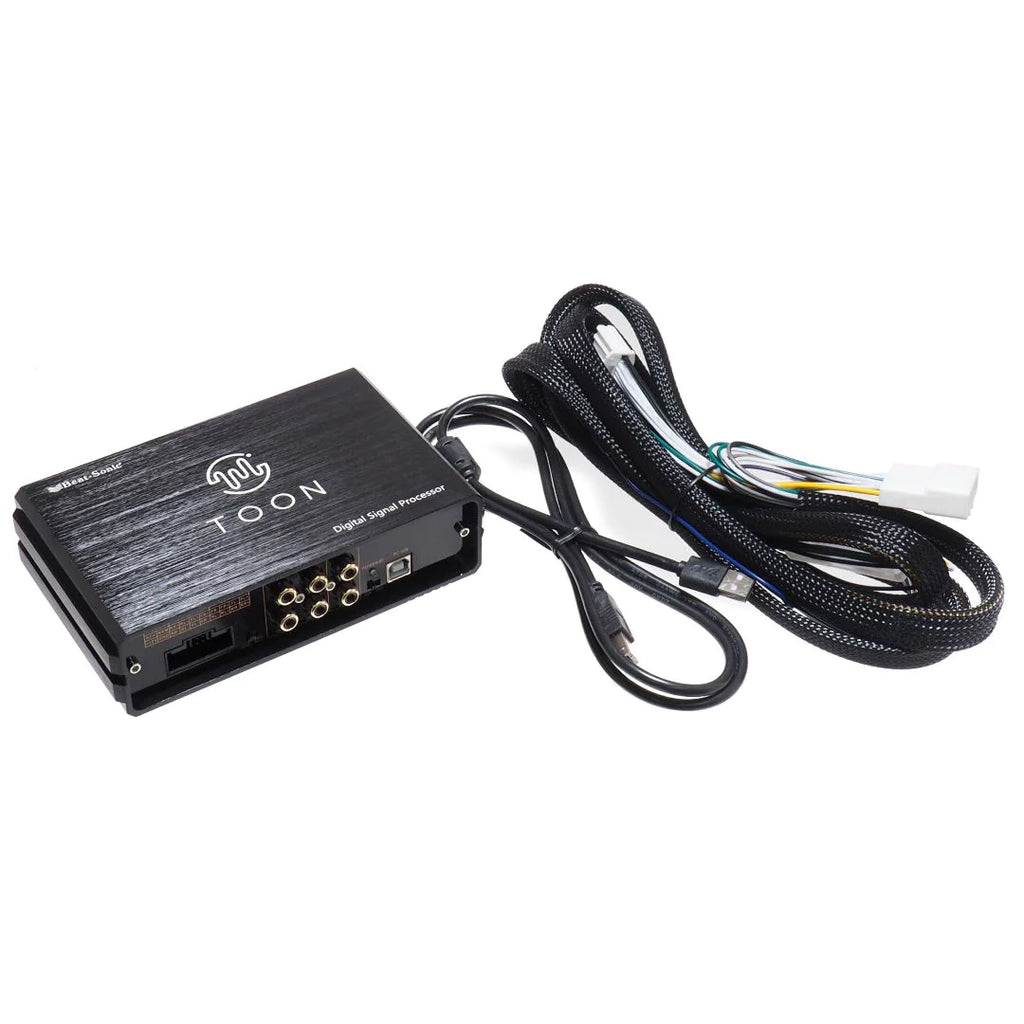

| Vehicle connection harness | about 2m |
Input
| high level | 4ch |
|---|---|
| RCA (AUX) | none |
| coaxial digital | none |
| optical digital | none |
| external digital | none |
| Bluetooth | none |
Output
| speaker | 4ch |
|---|---|
| RCA (output voltage) | 6 channels (2.2Vpp) |
| coaxial digital | none |
| optical digital | none |
| remote out | DC12V |
